High Efficiency 12 Port ST UPC Polishing Fixture with 110*5mm Size and 3D Pass Rate ≥98% for Fiber Optic Connectors

1
MOQ
$199.12-218.45
fiyat
High Efficiency 12 Port ST UPC Polishing Fixture with 110*5mm Size and 3D Pass Rate ≥98% for Fiber Optic Connectors
Özellikleri Fotoğraf Galerisi Ürün Açıklaması Fiyat talebi
Özellikleri
Teknik Özellikler
Net ağırlığı: 0.5kg
Malzeme: paslanmaz çeliği sertleştirmek
Boyut: 110*5mm
Lif Sayısı: 12
3D geçiş hızı: ≥% 98
Ekleme kaybı: ≤0.20db
Dönüş Kaybı: ≥55dB (PC) ≥60dB (APC)
Bağlayıcı tipi: SC,FC,LC,ST,MU,E2000(PC/APC)
Parlatma makinesi tipi: Merkezi Basınçlı Cila Makinası
Fiber çekirdek sayısı: 12
IPC Yapısı: Her konektörün bağımsız sıkıştırılması
Parazit geçiş oranı: ≥%98 (%100 Tipik, IEC'ye göre)
Yüzey kalitesi: Yüksek stabilite ve iyi yüzey kalitesi
Çelik tipi: sertleştirilmiş çelik S2316
İlk Geçiş Verimi: % 100
Vurgulamak:

12 Port Polishing Fixture

,

110*5mm Fiber Optic Polishing Fixture

,

3D Pass Rate ≥98% ST UPC Polishing Fixture
Temel bilgiler
Menşe yeri: Guangdong, Çin
Marka adı: chuanglixun
Model numarası: ST/PC
Ödeme & teslimat koşulları
Ürün Açıklaması
Factory Direct Sales High Efficiency ST UPC 12 Port Optical Fiber Cable Connector Polishing Plate Fixture

The fiber polishing fixture features an IPC structure with independent compression for each connector. With an interference pass rate ≥98% (typically 100% according to IEC standards), this fixture delivers high stability and excellent surface quality.

Constructed from high-quality heat-treated steel, the hardened S2316 steel ensures long service life. The fixture is compatible with SC, FC, ST, LC, MPO, E2000, FA connectors and can be customized to meet specific customer requirements.

Key Features
  • Designed for ST/PC and ST/UPC connector polishing
  • High efficiency - polishes 12 ferrules in one cycle
  • Replaceable holders reduce polishing costs
  • Polished ferrule dimensions comply with IEC standards
  • 100% first-pass yield for end face quality
Technical Specifications
Model ST/PC, ST/UPC
Net Weight 0.5kg
Connector Type SC, FC, LC, ST, MU, E2000 (PC/APC)
Polishing Machine Type Center Pressure Polish Machine
Number of Fiber Cores 12
Material Hardened stainless steel
Insertion Loss ≤0.20dB
Return Loss ≥55dB (PC), ≥60dB (APC)
Warranty Period 24 months

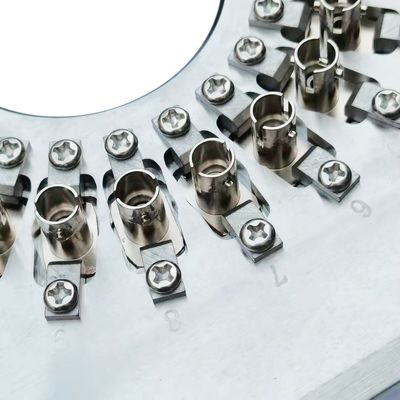

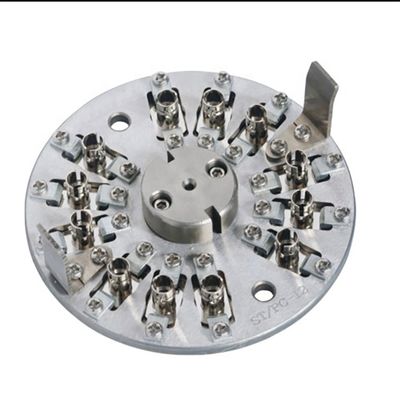

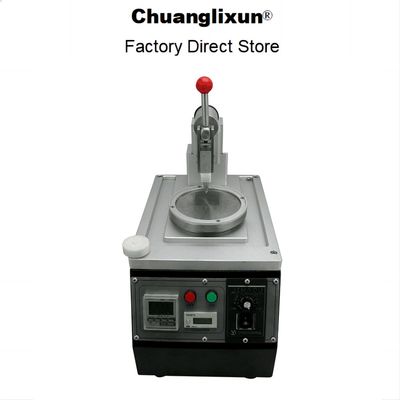

Product Images
High Efficiency 12 Port ST UPC Polishing Fixture with 110*5mm Size and 3D Pass Rate ≥98% for Fiber Optic Connectors 0 High Efficiency 12 Port ST UPC Polishing Fixture with 110*5mm Size and 3D Pass Rate ≥98% for Fiber Optic Connectors 1 High Efficiency 12 Port ST UPC Polishing Fixture with 110*5mm Size and 3D Pass Rate ≥98% for Fiber Optic Connectors 2

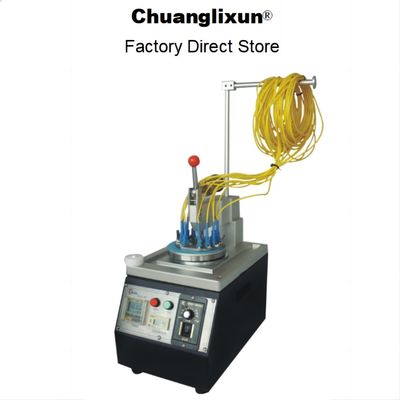

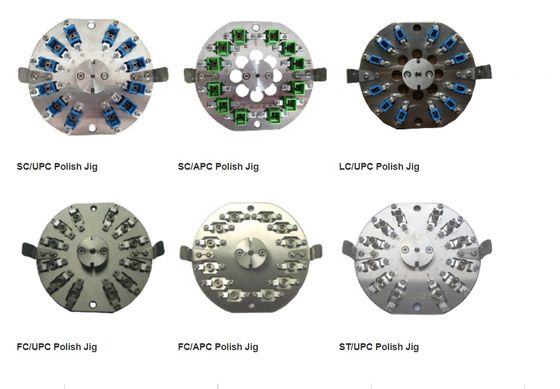

Available Models
High Efficiency 12 Port ST UPC Polishing Fixture with 110*5mm Size and 3D Pass Rate ≥98% for Fiber Optic Connectors 3 High Efficiency 12 Port ST UPC Polishing Fixture with 110*5mm Size and 3D Pass Rate ≥98% for Fiber Optic Connectors 4 High Efficiency 12 Port ST UPC Polishing Fixture with 110*5mm Size and 3D Pass Rate ≥98% for Fiber Optic Connectors 5
Frequently Asked Questions
1. Are you a factory or a trader?
We are a factory.
2. What is your MOQ?
Minimum order quantity is 1 piece.
3. Do you provide sample services?
Yes, we provide samples.
4. How will you ship to me?
We ship via DHL or FedEx (4-6 days). Delivery time may vary based on order quantity.
5. How do we pay?
We accept advance booking or multiple payment methods including T/T and T/L.
6. How long is your product warranty?
1-year warranty (free repairs except for consumables). After warranty, we provide cost-based replacement parts.
7. Do you provide customized services?
Yes, we offer customization based on customer requirements.
